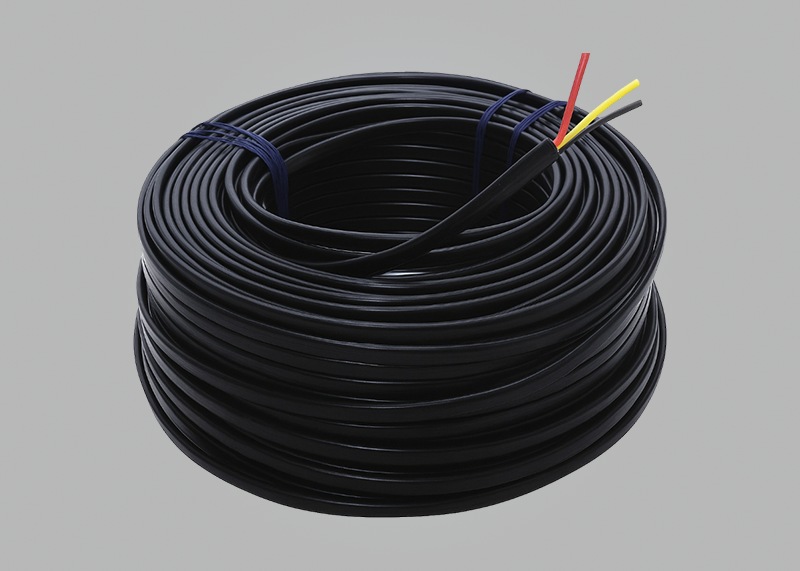

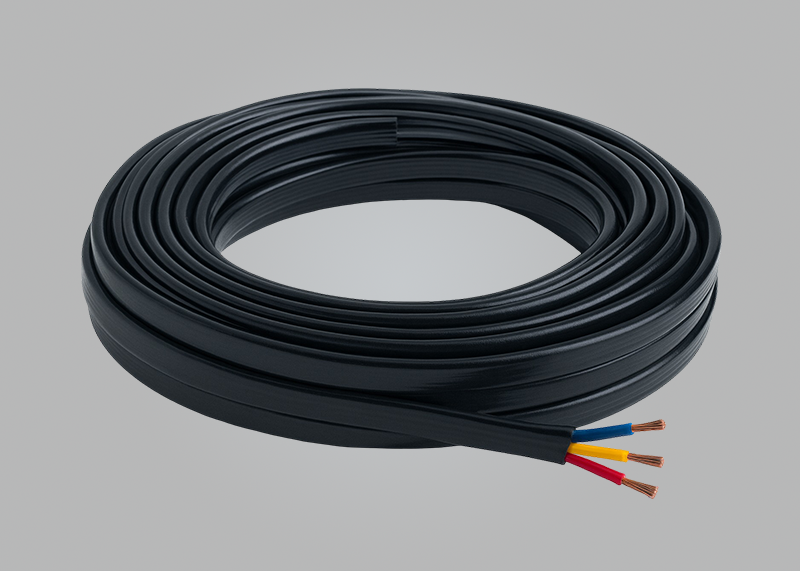

PVC Flat Cables – ISI Marked & Industry Standard Power Wiring Solutions
Certified, durable and flexible flat cables for industrial, commercial and domestic electrical applications
Our PVC Flat Cables are manufactured in compliance with ISI standards using premium electrolytic copper conductors and specially formulated PVC insulation. Designed for long-term performance, safety and reliability, these cables deliver stable power transmission even in demanding working environments.
Key Highlights
- ISI compliant manufacturing
- High purity copper
- Flame resistant PVC insulation
- Abrasion resistant sheath
- Excellent flexibility
- Long service life
Built for Long-Lasting Electrical Performance
PVC Flat Cables are preferred where strength, flexibility and space efficiency are important. The flat construction allows neat installation along walls, panels and conduits while minimizing bending stress.
The high-grade PVC compound protects against moisture, grease, heat and mechanical wear, while properly annealed copper conductors ensure low power loss and smooth current transmission. This results in improved electrical safety, reduced maintenance and long operational life.
Quality you can trust
Each PVC Flat Cable is produced under strict quality supervision using advanced manufacturing processes and high-grade raw materials. The insulation is engineered for flame resistance, abrasion protection and long-term durability.
This ensures consistent electrical performance, enhanced safety, lower risk of failure and extended service life — even in demanding environments.
Note : The number of wires and strand diameter will be such as to satisfy the requirements of conductor resistance as per IS 8130 : 2013
It may vary within the prescribed limit of IS : 8130-2013 with related classes and tables.
|
3 Core Flat Cables as per IS 694:2010 with ISI
mark |
|||||||
|
Conductor |
Insulation |
Sheath |
Overall Dimensions |
Conductor Resistance @20oC (max) ohms/km. |
Current Carrying Capacity @40oC Amps |
||
|
Area sq. mm. |
No./Dia. of Strands mm |
Thickness (Nom) mm |
Thickness (Nom) mm |
Width x Height (Approx) W x H mm Nom. Max. |
|||
|
1.5 |
22/0.30* |
0.60 |
0.90 |
11.0 x 5.0 |
12 x 5.60 |
12.10 |
14 |
|
2.5 |
36/0.30* |
0.70 |
1.00 |
13.0 x 5.8 |
13.0 x 6.20 |
7.41 |
18 |
|
4.0 |
56/0.30** |
0.80 |
1.00 |
15.30 x 6.70 |
15.30 x 7.1 |
4.95 |
26 |
|
6.0 |
84/0.30** |
0.80 |
1.10 |
17.1 x 7.3 |
19.20 x 8.4 |
3.3 |
31 |
|
3 Core Flat Cables generally conforming to IS 694
: 2010 |
|||||||
|
Conductor |
Insulation |
Sheath |
Overall Dimensions |
|
|
||
|
Area Sq. mm. |
No./Dia. of Strands mm |
Thickness (Nom) mm |
Thickness (Nom) mm |
Width (Approx) 'W' mm |
Width (Approx) 'H' mm |
Conductor Resistance @20oC (max) ohms/km. |
Current Carrying Capacity @40oC Amps |
|
1.5 |
22/0.30 |
0.8 |
1.15 |
12.8 |
6.0 |
12.10 |
14 |
|
2.5 |
36/0.30 |
0.9 |
1.15 |
14.6 |
6.4 |
7.41 |
18 |
|
4.0 |
57/0.30 |
1.0 |
1.15 |
17.2 |
7.4 |
4.95 |
26 |
|
6.0 |
85/0.30 |
1.0 |
1.15 |
18.7 |
7.9 |
3.30 |
31 |
|
10.0 |
140/0.30 |
1.0 |
1.40 |
23.7 |
9.9 |
1.91 |
42 |
|
16.0 |
226/0.30 |
1.0 |
1.40 |
28.0 |
11.4 |
1.21 |
57 |
|
25.0 |
354/0.30 |
1.2 |
2.00 |
35.5 |
14.7 |
0.780 |
72 |
|
35.0 |
496/0.30 |
1.2 |
2.00 |
39.5 |
16.2 |
0.554 |
90 |
|
*As per conductor Class 2 of IS 8130 : 2013
**As per conductor Class 5 of IS 8130 : 2013 |
|||||||
- Flame resistance
- Excellent malleability
- Fine finish
- The wires are drawn, annealed and bunched properly to ensure long life.
- Each of these three flexible copper conductors is insulated with a specially formulated PVC compound and the cores are laid-up in Flat Parallel Position.
- The outer sheath of the cable is made from a special grade of abrasion resistant PVC compound impervious to water, grease oil and flexible in nature. , The PVC insulated copper conductor and PVC sheathed 3 Core Flat Cables are made similar to satisfy the requirements as per IS 694, Sequential meter marking is printed for users convenience to get correct length of cables.
- Vimal brand name and size of cable is embossed on the sheath.
