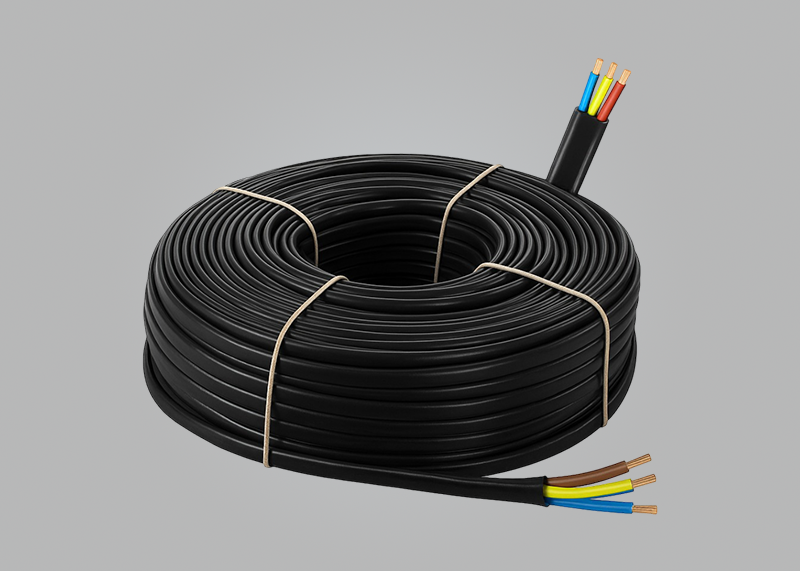

3 Core Flat Submersible Cable – ISI Marked (IS 694:2010)

Reliable power connection for submersible pumps, borewell systems and water motors

Our 3 Core Flat Submersible Cable is engineered for continuous underwater operation, offering excellent electrical performance, high safety standards and long service life. Manufactured using premium electrolytic copper conductors with superior PVC insulation, this cable ensures smooth pump performance even in harsh working conditions.

Key Highlights

ISI Marked and compliant with IS 694:2010
High quality copper for efficient power flow
Strong insulation for moisture and water resistance
Flexible design for easy installation
Tested for durability and voltage safety

Get A Free Quote

Built for dependable submersible pump performance

Submersible pumps operate in demanding environments where cable quality directly affects motor life and efficiency. Our flat submersible cable is designed to withstand continuous exposure to water, pressure and rough handling while maintaining consistent electrical output.

The high-grade insulation protects against leakage, short circuits and breakdowns, while the copper conductor ensures low power loss and smooth current flow. This results in better pump efficiency, reduced maintenance costs and long-term reliability.

Quality you can trust

Every coil of cable is produced under strict quality control and undergoes high-voltage testing before dispatch. The materials used are carefully selected to provide excellent insulation strength, resistance to moisture and long working life.

This ensures

Consistent pump performance
Improved electrical safety
Reduced risk of breakdowns
Long-term durability in submerged conditions

Note : The number of wires and strand diameter will be such as to satisfy the requirements of conductor resistance as per IS 8130 : 2013

It may vary within the prescribed limit of IS : 8130-2013 with related classes and tables.

3 Core Flat Cables as per IS 694:2010 with ISI mark
Conductor		Insulation	Sheath	Overall Dimensions		Conductor Resistance @20^oC (max) ohms/km.	Current Carrying Capacity @40^oC Amps
Area sq. mm.	No./Dia. of Strands mm	Thickness (Nom) mm	Thickness (Nom) mm	Width x Height (Approx) W x H mm Nom. Max.		Conductor Resistance @20^oC (max) ohms/km.	Current Carrying Capacity @40^oC Amps
1.5	22/0.30*	0.60	0.90	11.0 x 5.0	12 x 5.60	12.10	14
2.5	36/0.30*	0.70	1.00	13.0 x 5.8	13.0 x 6.20	7.41	18
4.0	56/0.30**	0.80	1.00	15.30 x 6.70	15.30 x 7.1	4.95	26
6.0	84/0.30**	0.80	1.10	17.1 x 7.3	19.20 x 8.4	3.3	31

Instruction for use

As this product is being delicate & it's application being critical, A due care should be taken in handling of winding wire from manufacturing of coils to packing of pump. These wire are strictly passes through 'High voltage test' with latest computerized equipment in Vimal factory to avoid any critical problem while using. So customer does not required to carry out any test (except Meager Tes) in all respects
Do not stack more than 4 coils otherwise, bottom coil is likely to get damaged due to upper coil weight.

Always keep away winding wire from those things having sharp edges to avoid unintentional damage. Also avoid welding spark falling on winding wire while welding. It is sure that if a care has been taken during the use of winding wire store time & inserting into stator slot it will be definitely ensure your Submersible pump's performance & Trouble free shooting for long long time.

To ensure proper jointing with three core flat cable with motor to avoided failure.

Flame resistance
Excellent malleability
Fine finish
The wires are drawn, annealed and bunched properly to ensure long life.

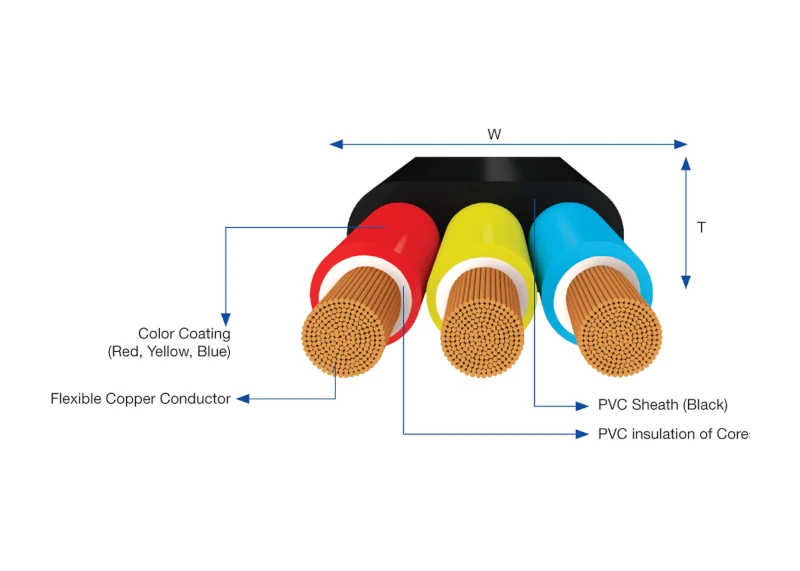

Each of these three flexible copper conductors is insulated with a specially formulated PVC compound and the cores are laid-up in Flat Parallel Position.
The outer sheath of the cable is made from a special grade of abrasion resistant PVC compound impervious to water, grease oil and flexible in nature.
The PVC insulated copper conductor and PVC sheathed 3 Core Flat Cables are made similar to satisfy the requirements as per IS 694, Sequential meter marking is printed for users convenience to get correct length of cables.
Vimal brand name and size of cable is embossed on the sheath.
